Carrier Cooler 20ft Reefer Container with Side Door Aluminum Bottom Thermo King Refrigerated Freezer

Type : Reefer Container

Length (feet) : 20'

Capacity : 31.2 CUM

External Dimensions(l x W x H)(mm) : 6058 x 2438 x 2591mm

Internal Dimensions(l x W x H)(mm) : 5456 x 2224 x 2273 mm

Place of Origin : Tianjin, China

Brand Name : ACE

Ourside : Corten-A

Bottom : Aluminum

Floor : T-Bar

Refrigerant : R134a/R404A

Insulating Layer : Polyurethane

Quality Control : ABS / BV / GL / DNV

Cooler Brand : Daikin / Thermo King / Carrier

Price : $18,900.00/pieces 1-1 pieces

MOQ : 1 pieces

Delivery Time : within 30 days

Contact Now

Carrier Cooler 20ft Reefer Container with Side Door Aluminum Bottom Thermo King Refrigerated Freezer

Hot Sale Products

Product Details

20ft Open Side Door Reefer Container

Reefer container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or bellow deck) throughout the world and will range from -30°C (-22F Deg) to +80°C (176F Deg) without effect on the strength of basic structure. A mechanical refrigeration unit of a “one piece picture frame type” will be fitted to the front end frame. The container is designed with a refrigeration unit to maintain the inside space temperature at -18°C in ambient temperature up to 38°C.

3 Brand Cooling Unit for Choose

Thermo King (US)

Cooling gas: R134a

400 to 500 Vac 3ph 60 Hz

360 to 460 Vac 3ph 50 Hz

Temperature Range:

-40℃ (-40F) to 30℃ (86F).

Carrier(US)

Cooling gas: R134a

380/460 VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30℃ (-22F) to 30℃ (86F).

Daikin (Japan)

Cooling gas: R134a

380/440VAC 3ph 50/60Hz

24 VAC control circuit

Temperature Range:

-30~50°C (-22~122°F)

TK Compressor, R404A gas

Power Cable 18mm

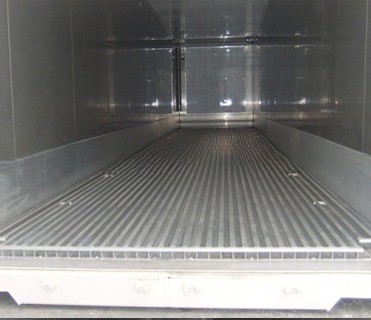

Aluminum T Floor

Refer Container Cable Plug

CSC Plate

Thermo King MP4000 Controler

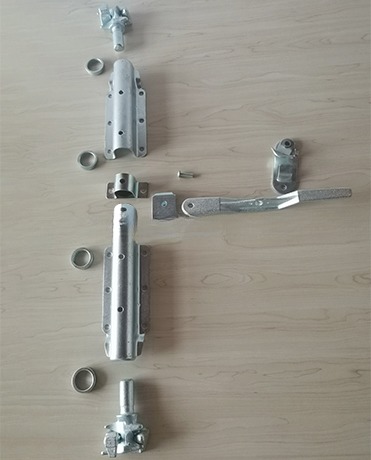

Reefer Container Parts

Product Datasheet

Specification of 20ft thermo king reefer container
External Dimension	6058 x 2438 x 2591 mm
Internal Dimension	5468 x 2294 x 2273 mm
Door Opening	2290 x 2264 mm
Inside Cubic Capacity	28.4 cbm
Maximum Gross Weight	30480 kgs
Tare Weight	2900 kgs
Maximum Payload	27580 kgs
Allowable Stacking Weight/1.8G	216000 kgs
Cooling Capacity/W	6300/5580 AT -18℃ Inside/ 38℃ Outside 60/50HZ
Main Circuit	3 PHASE AC 440, 460V/380, 400, 415 60/50HZ
Consumption/KW	MAX 13.5 60HZ

Our Advantages

FAQ

1. Can you supply ONE WAY survice for 20ft reefer container to my country?
Yes, we can do one way to the main port in the wold, kindly contact us for your detail requirement.

2 Can we choose the cooler system?
Sure, you could choose one from Daikin / Carrier / Thermo king.

3 Can i load my goods in China?
Yes, but we suggest you not to load dry cargoes. Because reef container have restrict requirement on cargo package and Loading/unloading.

4 Do you supply generator?
Yes, we have. More details please contact us.

5. What is the payment terms that you can accept?
Generally T/T 30% deposit before producation and 70% before shipment.
Other payment terms please contact me for more details.
